Product Description

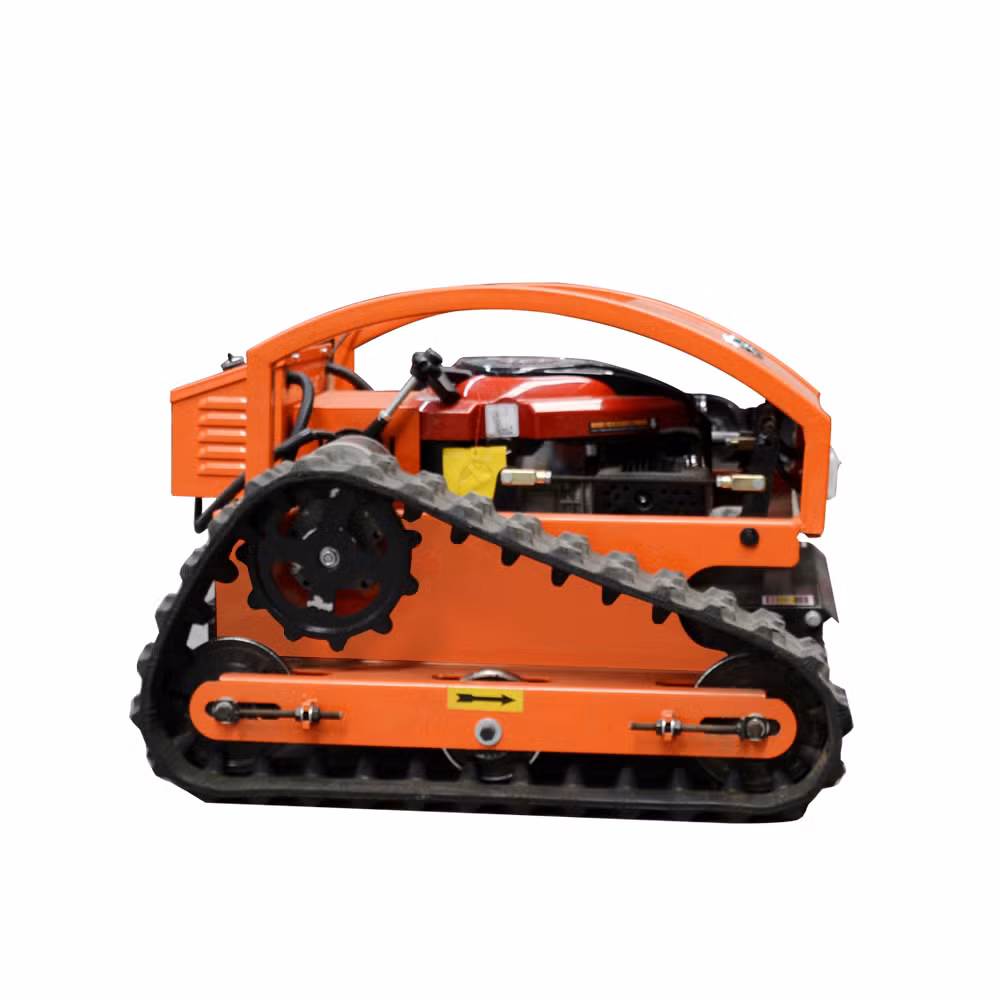

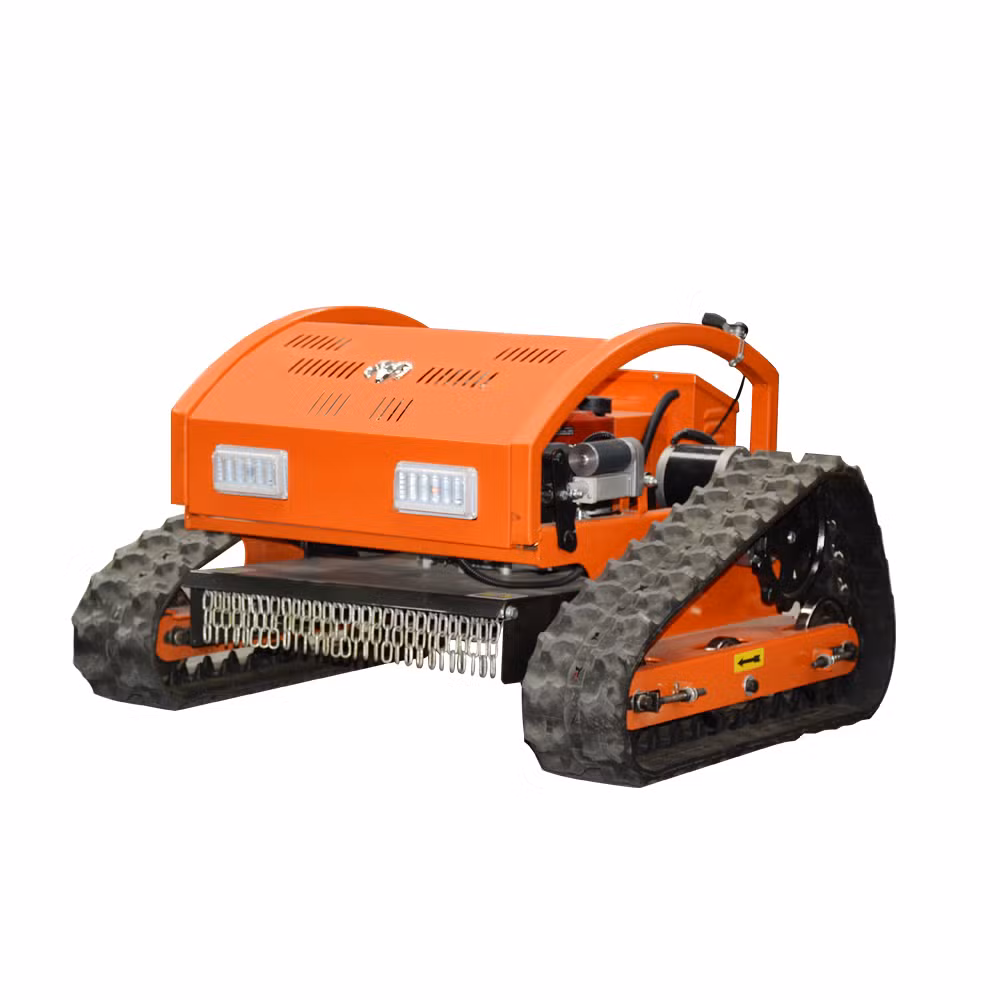

Smart Remote Control Lawn Mower Cordless Lawn Mower Mini Robot Lawn Mower Prices With Parts
The intelligent lawn mower can complete the work of mowing the lawn independently, without direct human control and operation, and has low power, low noise, exquisite and beautiful appearance, and greatly reduces manual operation.
The intelligent lawn mower is suitable for clearing all kinds of weeds such as reeds, alfalfa, fish grass and other large and small plots of plains, hills, terraces, orchards, and triangles, with simple operation and high work efficiency.
| Model | KB750-8A |
| Dimensions | 930*860*580mm |
| Package Size | 1060*960*810mm |
| Total Weight | 130kg |
| Cutting Width | 550mm |
| Height Adjustment | 10-150mm |
| Cutting Height | 20-150mm |
| Walking Speed | 0-6km/h |
| Gradeability | 0-30° |
| Min. ground Clearance | 20mm |
| Operation Method | Remote control walking, remote control cutter head lifting |
| Way Of Walking | Tracked self-propelled |
| Engine Brand | LONCIN Vertical axis four stroke |
| Power | 7.5hp |
Instructions for Robot Lawn Mower
D/R switch (large and small rudder): adjust the walking speed of the machine (the factory default is high gear) The left joystick controls the machine to move forward and backward, and the right joystick controls left and right turns.
5 channels (two-stage switch): the cutter head is raised and lowered to adjust the cutting height of the cutter head.
Rudder fine-tuning (left-right adjustment): When adjusting the walking speed of the machine, the ESC inside the machine will make a "drip" sound. At this time, you can use the "rudder fine-tuning" button until the ESC inside the machine does not make any sound.
Throttle fine adjustment (up and down adjustment): The same principle as the 'rudder fine adjustment' button.
Power switch: push up to turn on the remote control, and pull down to turn off the remote control.
